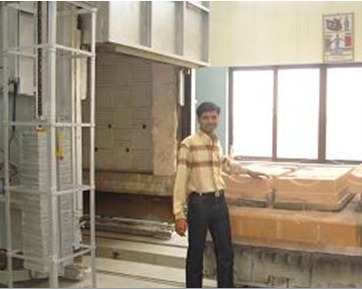

Bogie Hearth Furnace
We are involved in constructing Bogie Hearth Furnace for any charge weights. The Operating temperatures of Bogie Hearth Furnace may vary from low temperature application with gas circulation to temperature upto 1100°C. The heating of Bogie Hearth Furnace could Electric, Gas or HSD,. The Bogie Hearth Furnace for all above applications. Range ofBogie Hearth Furnace for 30T capacity. Operating temperatures may vary from low temperature application above 1100°C. Furnace can be offered with single bogie or double bogie, with motorized rack and pinion drive system, motorized or pneumatic door operation, effective sealing arrangement etc. The heating could be gas or liquid fuel fired including high velocity burners and also electrically heated. We can also offer radiant tube fuel firing for special applications. We offer electrical heated bogie hearth type tempering furnaces for the tempering of hardened alloy steel bars, coils and castings.
Electrically heated or Gas fired
Temperature range : 250 degree C to 1100 degree C
Effective Hearth width : 600 mm to 4000 mm .
Gas Burners : With cold air or preheated air from recuperator or self recuperative burner or regenerative burner
Electric Heating : Strip elements or ROB elements or cartridge elements
Recirculation Fans for ensuring temperature uniformity for low temperature application kit: Temperature Control : PID mode
Optional : Control cooling facility
Process : Tempering, stress relieving, annealing, hardening, normalizing, solution annealing
Capacity : 500 kgs / batch to 30,000 kgs / batch.
